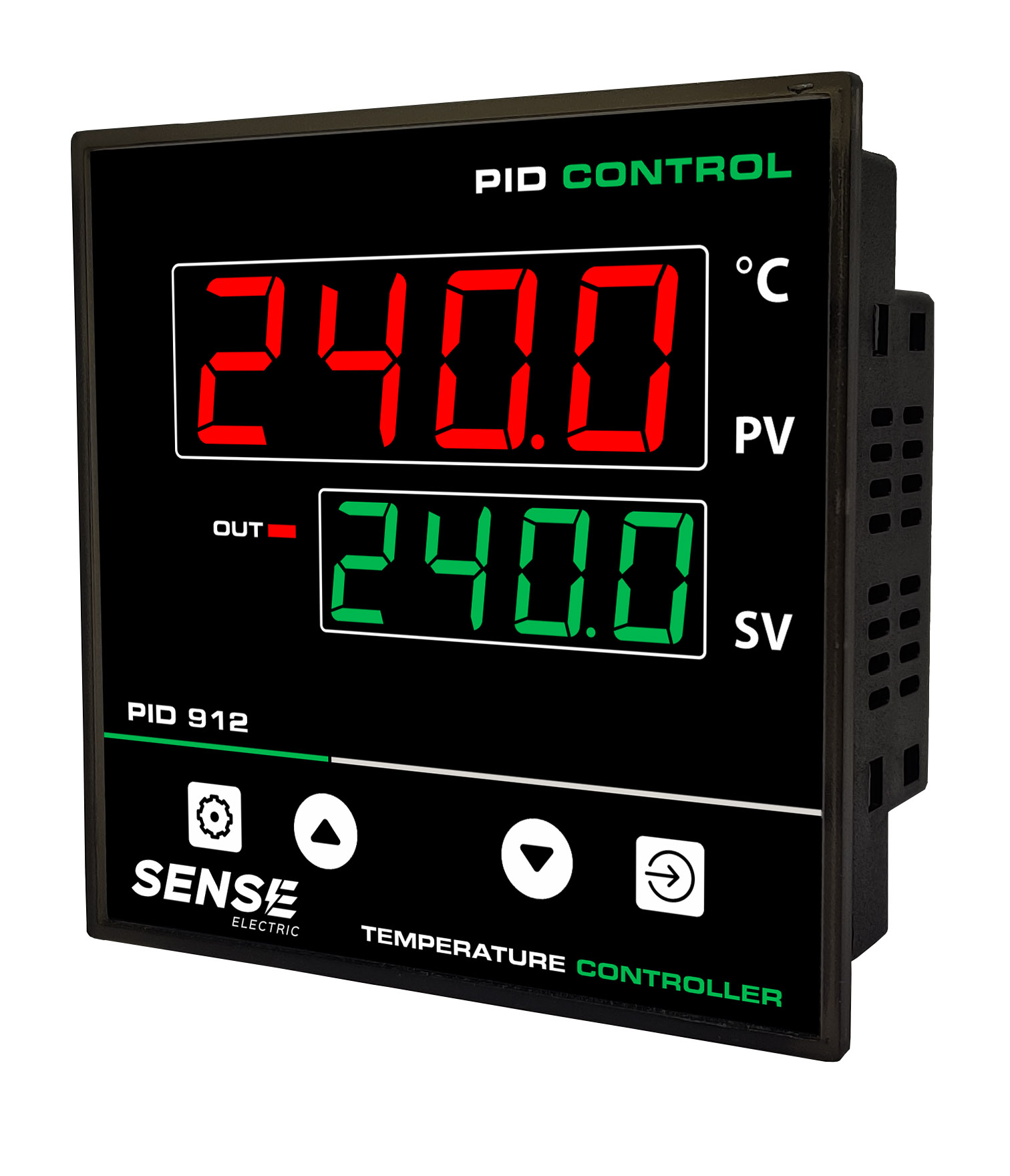

PID Temperature Controller 1 Relay, Dual Display
Configurable Input (J/K/RTD) 3+3 Digits Dual Line Red / White LED Display PID/On-Off Controller Single Output (Relay || SSR)
Application:
- -Industrial Ovens
- -Pharmaceutical Industry
- -Packaging Machine
- -Lab Instruments
- -Diary Industry
| Dimension (HxWxD) mm | 72x72x60 |
| Panel Cutout (mm) | 68x68 |
| Display Size | Upper: 0.8 inch, Lower: 0.56 inch |
| Display Type | 7 Segment LED, 3 Digit |
| Input Type | J Type (0 to 850 °C), K Type (0 to 999 °C), RTD 2W/3W (-50 to 400 °C) |
| Resolution | For J Type & K Type 1°C, For RTC 2W/3W 1 °C |
| Output | Relay : 1 C/O 10A for Resistive Load || SSR 12V DC @20mA Max |
| Control Mode | ON-OFF / PID |
| Accuracy | ±1.0% of FSD |
| Power Supply | 100 - 270 V AC, 50/60 Hz |
| PID 912 | PID 912-RG |
| PID 412 | PID 412-RG |
