Dimension (HxWxD) mm | 72x72x60 |
Panel Cutout (mm) | 68×68 |
Display Size | 0.56 inch (14.2 mm) |
Display Type | 7 Segment LED, 3 Digit, 2 Line |
Elecrical Connection | 1Ø 2wire |
Rated Input | Voltage: 180 to 300 VAC (L-N) / 300 to 500 VAC (L-L) Current: CT secondary 5A (50mA to 5A) CT Primary 5A to 6000A |
Output | Relay 1: 1 C/O 5A for Resistive Load |
Tripping Facility | Over/ Under Current                          Over/ Under Voltage |
Accuracy | Class 1.0 |
Power Supply | Self Powered: 300 to 500 VAC (L-L)/ 180V to 300 VAC (L-N) (Factory Set) |
Note | Extenal CT 60A, 100A Available |

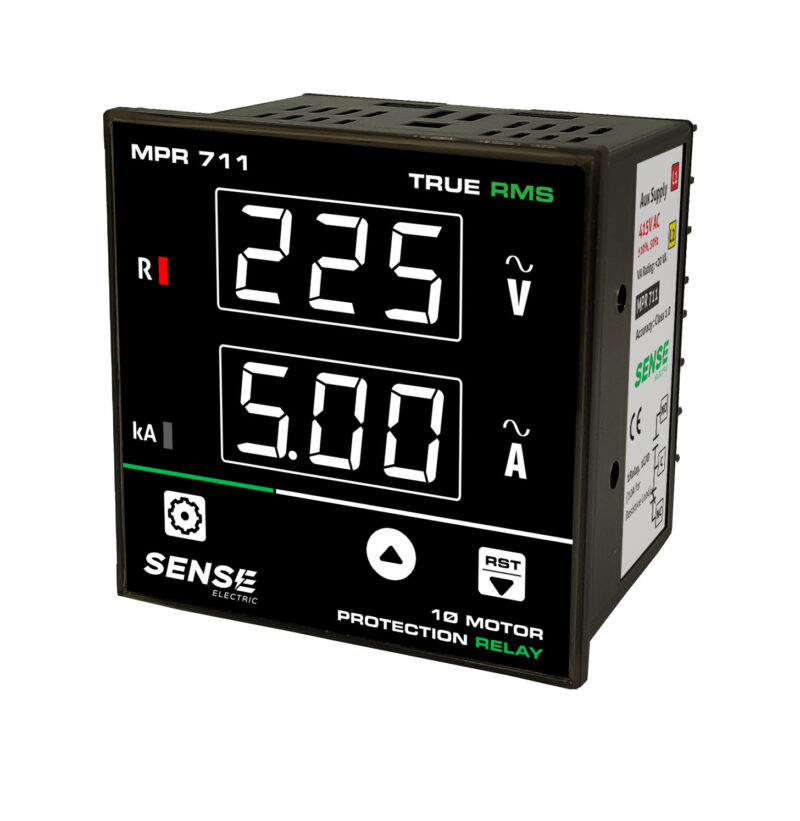

MPR 711
1Ø Motor Protection Relay
