| Dimension (HxWxD) mm | 72x72x85 |
| Panel Cutout (mm) | 68×68 |
| Display Size | Upper: 0.8 inch, Lower: 0.39 inch |
| Display Type | 7 Segment LED, 4 Digit |
| Input | NPN / PNPÂ Proximity / Micro Switch (Field Selectable) |
| Range | 0 – 9999 / 0 -999.9 Count |
| Output | 1 Relay 1 C/O 5A, 230V AC for Resistive Load |
| Count Direction | UP / DOWN |
| Memory | Yes / No |
| Reset | Auto Reset / Mannual Reset Front & Back Both Reset Available |
| Power Supply | 100 – 270 V AC, 50/60 Hz |

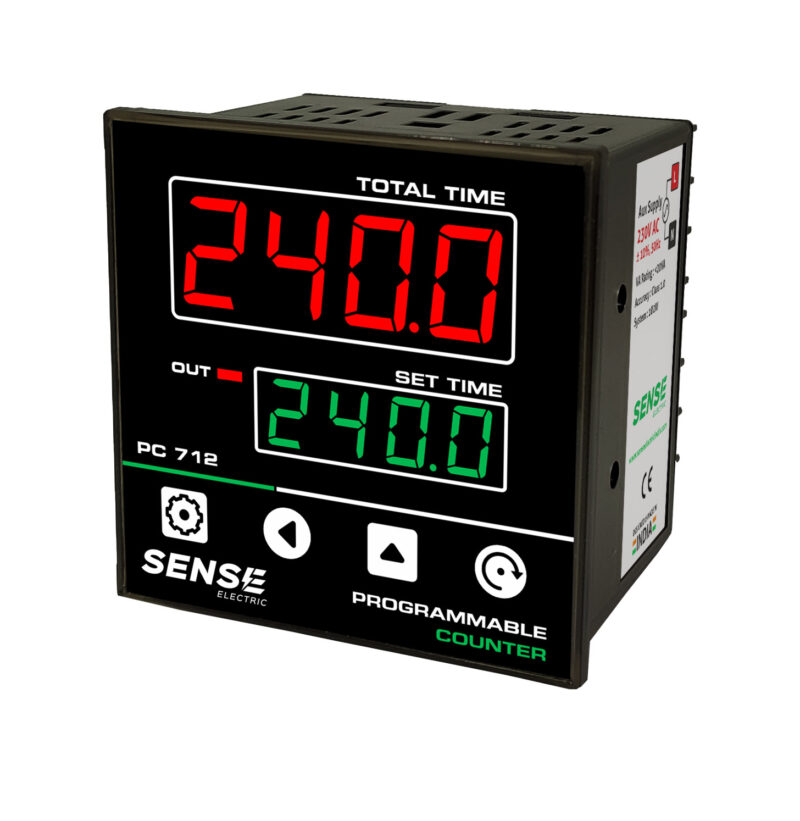

PC 712
Programmable Counter
