Dimension (HxWxD) mm | 72x72x60 |
Panel Cutout (mm) | 68×68 |
Display Size | 0.56 inch (14.2 mm) |
Display Type | 7 Segment LED, 4 Digit |
Input Type | 0-10 V DC / 0-20 mA DC / 4-20 mA DC (Field Selectable) |
Range | -999 to 9999 |
Display Resolution | 1 / 0.1 / 0.01 / 0.001 (Field Selectable) |
Additional Feature | Correction Factor, Offset, Filtration Rate, Reverse Scalling |
Accuracy | ±0.5% of FS ±1 Digit |
Power Supply | 100 – 270 V AC, 50/60 Hz |

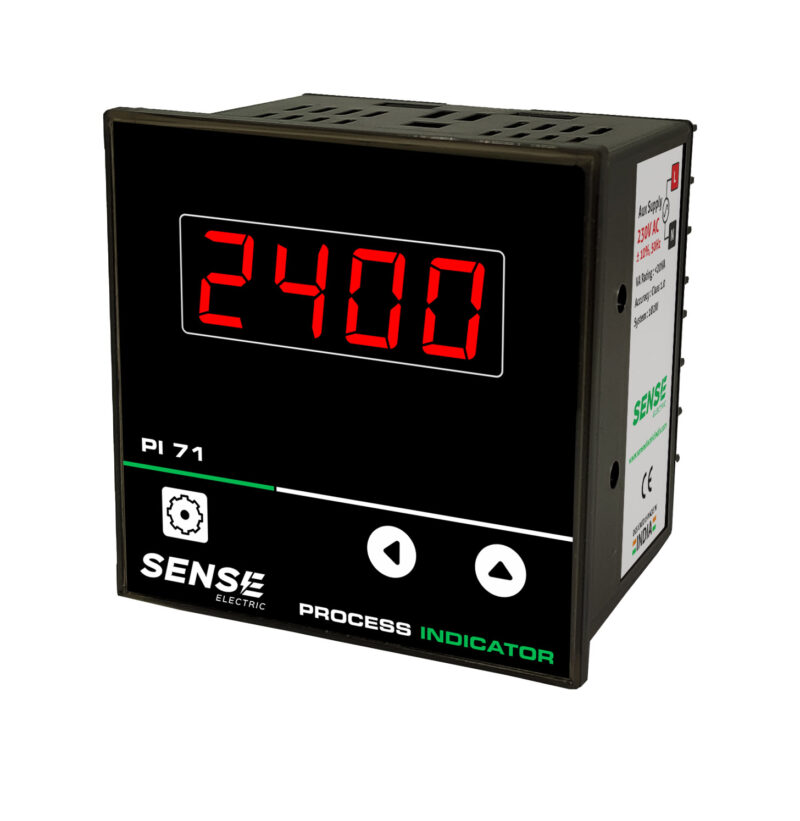

PI 71
Process Indicator
