| Dimension (HxWxD) mm | 96x96x40 |
| Panel Cutout (mm) | 92×92 |
| Display Size | Upper: 0.56 inch, Lower: 0.39 inch |
| Display Type | 7 Segment LED, 6 Digit (Upper), 4 Digit (Lower) |
| Input | NPN / PNP Proximity / Micro Switch (Field Selectable) |
| Range | Upper Display: 0 – 999999 Count Lower Display: 0 -9999 Count |
| Output | 1 Relay 1 C/O 5A, 230V AC for Resistive Load + Buzzer |
| Memory | Non – Volatile Memory |
| Reset | Auto Reset / Mannual Reset Front & Back Both Reset Available |
| Power Supply | 100 – 270 V AC, 50/60 Hz |

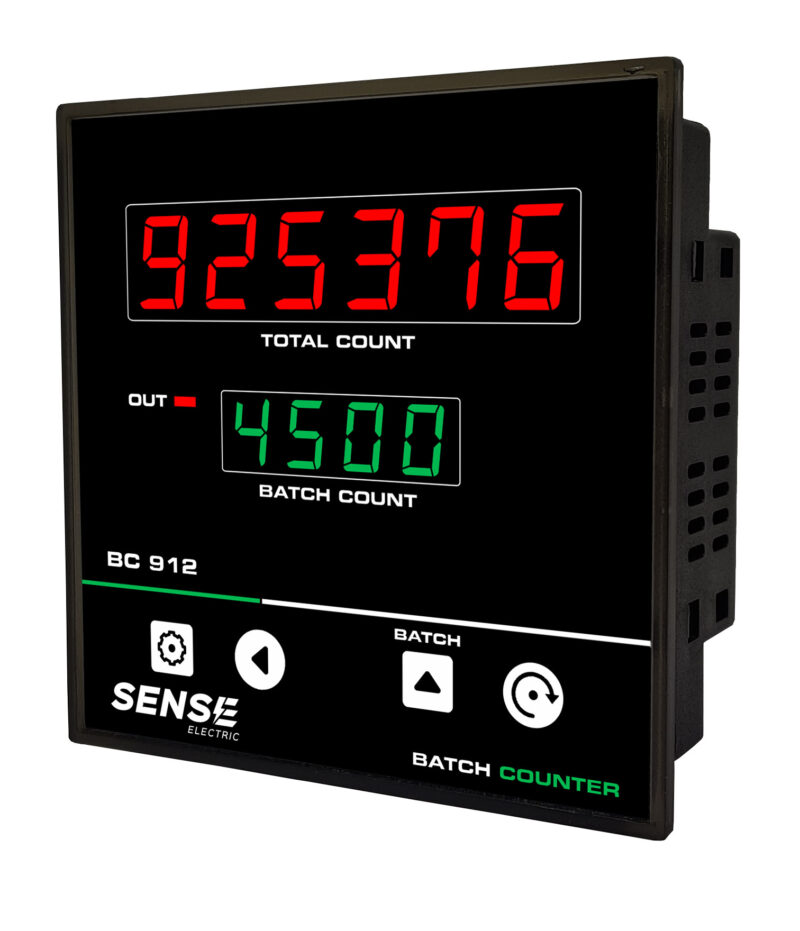

BC 912
Batch Counter
