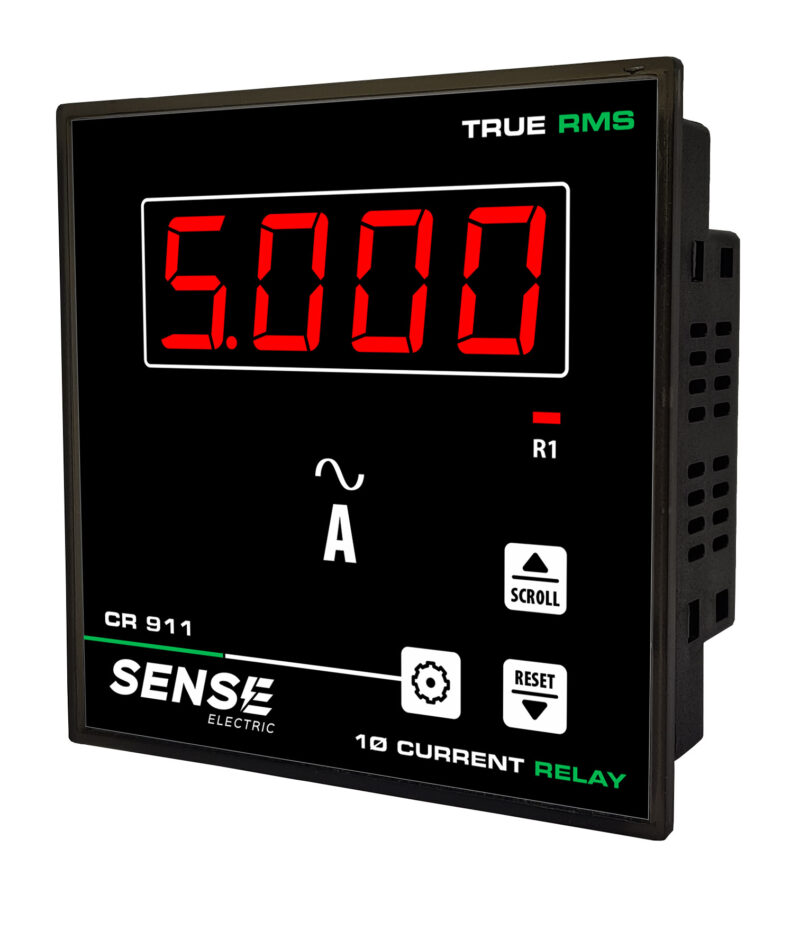

CR 911

1Ø Current Protection Relay

Dimension (HxWxD) mm 96x96x40
Panel Cutout (mm) 92×92
Display Size 0.8 inch (20 mm)
Display Type 7 Segment LED, 4 Digit
Rated Input CT Secondary 5A (50 mA to 5A)
CT Primary 5A to 6000A (Field Selectable)
Output Relay 1: 1 C/O 5A for Resistive Load
Tripping Facility Over Current                 Under Current
Phase Loss                   Current Assymetry
Accuracy Class 1.0
Power Supply 230 VAC ± 10%, 50 Hz
