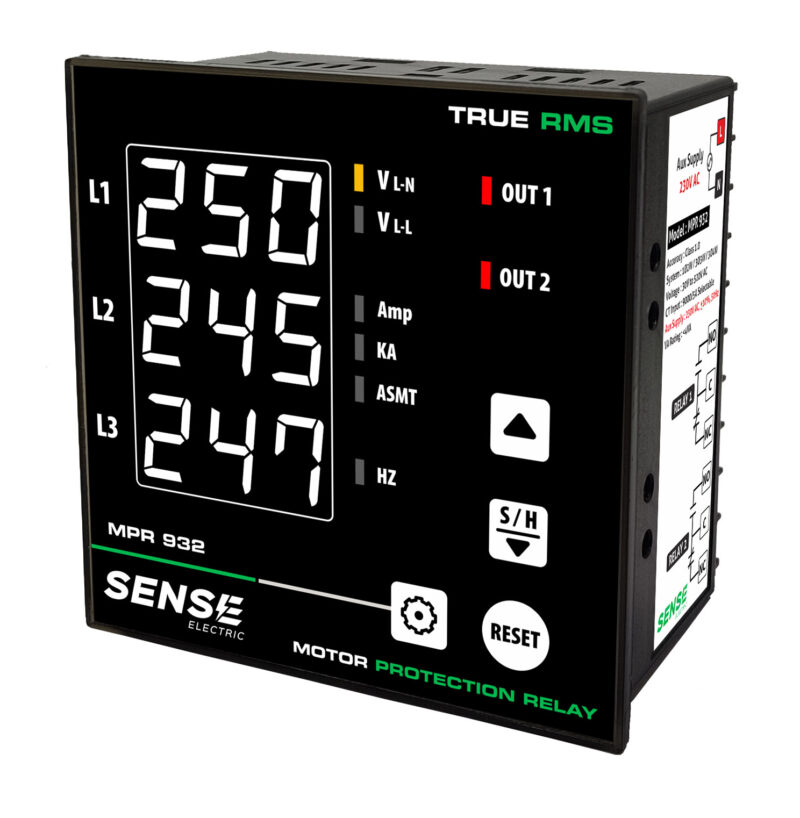

MPR 932

3Ø Motor Protection Relay

Dimension (HxWxD) mm 96x96x60
Panel Cutout (mm) 92×92
Display Size 0.56 inch (14.2 mm)
Display Type 7 Segment LED, 3 Digit, 3 Line
Elecrical Connection 1Ø 2wire, 3Ø 3 wire, 3Ø 4 wire (Field Selectable)
Rated Input Voltage: 30 to 300 VAC (L-N) / 50 to 520 VAC (L-L)
Current: CT secondary 5A (50mA to 5A)
CT Primary 5A to 6000A
Output Relay 1: 1 C/O 5A for Resistive Load
Relay 2: 1 C/O 5A for Resistive Load
Tripping Facility Over/ Under Current                           Short Circuit
Over/ Under Voltage                           Phase Sequence
Over/ Under Frequency                     Phase Loss
Assumetry Voltage & Current         Lock Rotor
Accuracy Class 1.0
Power Supply 100 to 270 VAC, 50/60 Hz
