| Dimension (HxWxD) mm | 48x48x70 |
| Panel Cutout (mm) | 46×46 |
| Display Size | 0.56 inch (14.2 mm) |
| Display Type | 7 Segment LED, 3 Digit |
| Input Type | J Type (0 to 850 °C), K Type (0 to 999 °C) or RTD 2W/3W (-50 to 400 °C) (Factory SET) |
| Resolution | 1°C |
| Output | Relay 1: 1 C/O 10A for Resistive Load || SSR 12V DC @20mA Max |
| Control Mode | ON-OFF |
| Accuracy | ±1.0% of FSD |
| Power Supply | 100 – 270 V AC, 50/60 Hz |

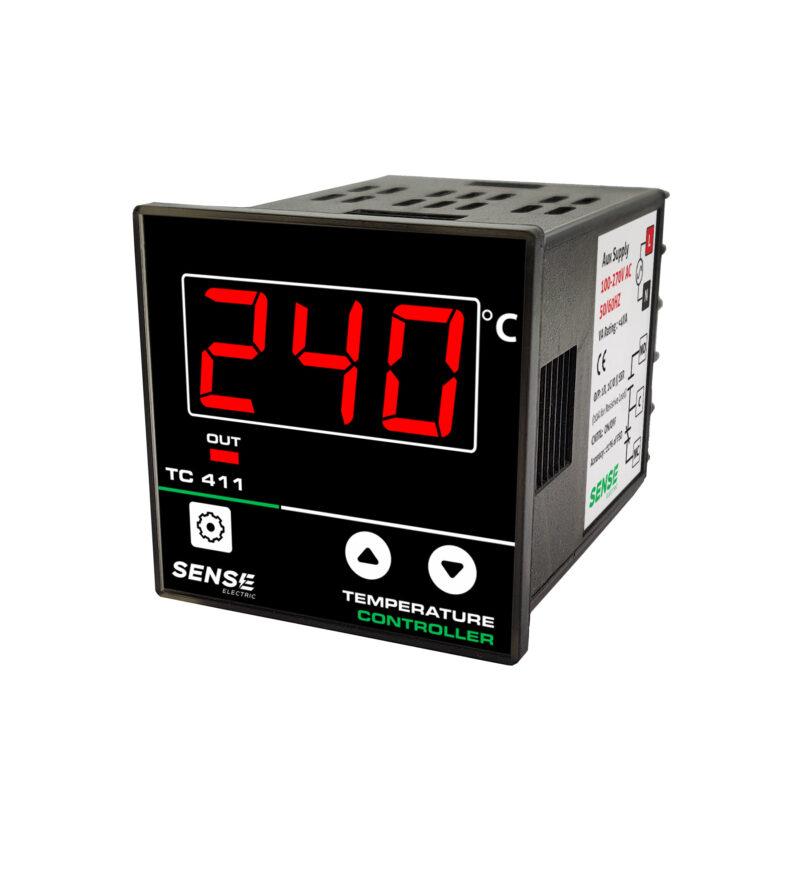

TC 411
Fixed Input Temperature Controller
