| Dimension (HxWxD) mm | 96x96x50 |
| Panel Cutout (mm) | 92×92 |
| Display Size | Upper: 0.8 inch, Lower: 0.56 inch |
| Display Type | 7 Segment LED, 4 Digit |
| Start Pulse | Micro Switch / Limit Switch / Proximity (Field Selectable) |
| Range | 9999 / 999.9 / 99.99 Sec 9999 / 999.9 / 99.59 Min 9999 / 999.9 / 99.59 Hour (Field Selectable) |
| Output | 1 Relay 2 C/O 5A, 230V AC for Resistive Load / SSR Drive O/P 12V Max 20 mA DC (Factory Set) |
| Operation Mode | Delayed ON / Delayed OFF / Cycle Mode (Field Selectable) |
| Counting Direction | UP / DOWN (Field Selectable) |
| Memory | YES / NO (Field Selectable) |
| Reset | Front & Back Both Reset Available |
| Power Supply | 100 – 270 V AC, 50/60 Hz |

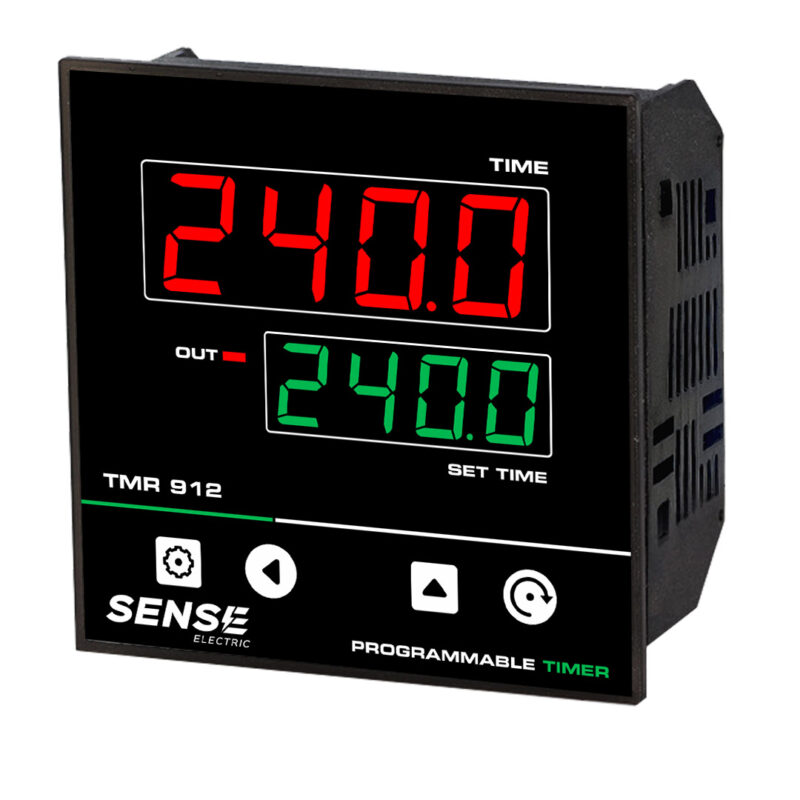

TMR 912
Digital Timer 1 Relay
