| Dimension (HxWxD) mm | 72x72x85 |
| Panel Cutout (mm) | 68×68 |
| Display Size | 0.56 inch (14.2 mm) |
| Display Type | 7 Segment LED, 3 Digit |
| Range | 999 / 99.9 Min 999 / 99.9 Sec (Field Selectable) |
| Output | 1 Relay 2 C/O 5A, 230V AC for Resistive Load / SSR Drive O/P 12V Max 20 mA DC (Factory Set) |
| Operation Mode | Delayed ON / Delayed OFF (Field Selectable) |
| Counting Direction | UP / DOWN (Field Selectable) |
| Memory | YES / NO (Field Selectable) |
| Power Supply | 100 – 270 V AC, 50/60 Hz |

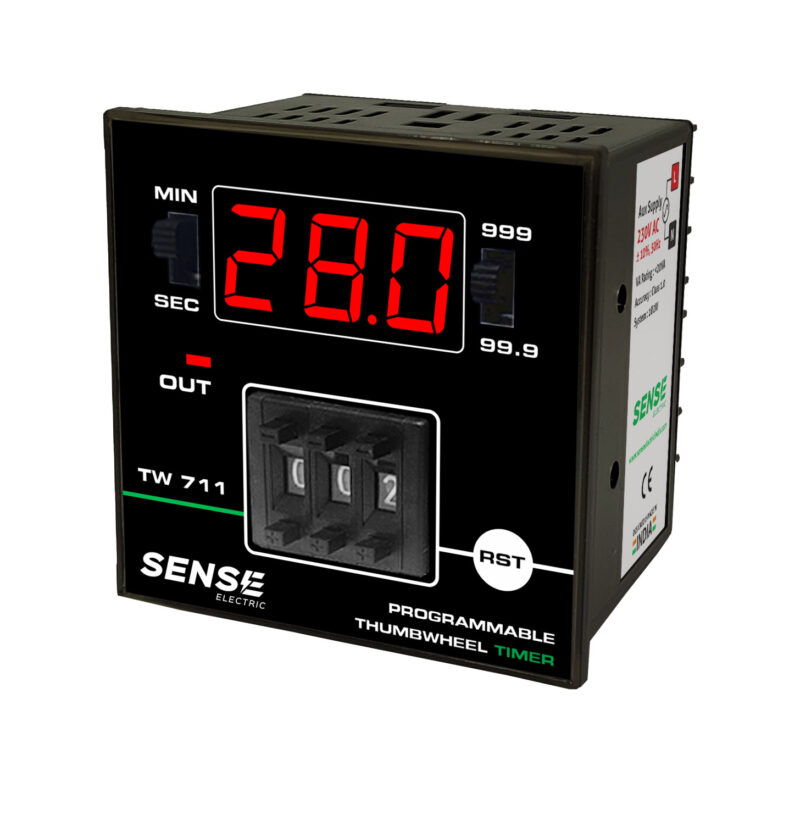

TW 711
Thumb Wheel Timer
